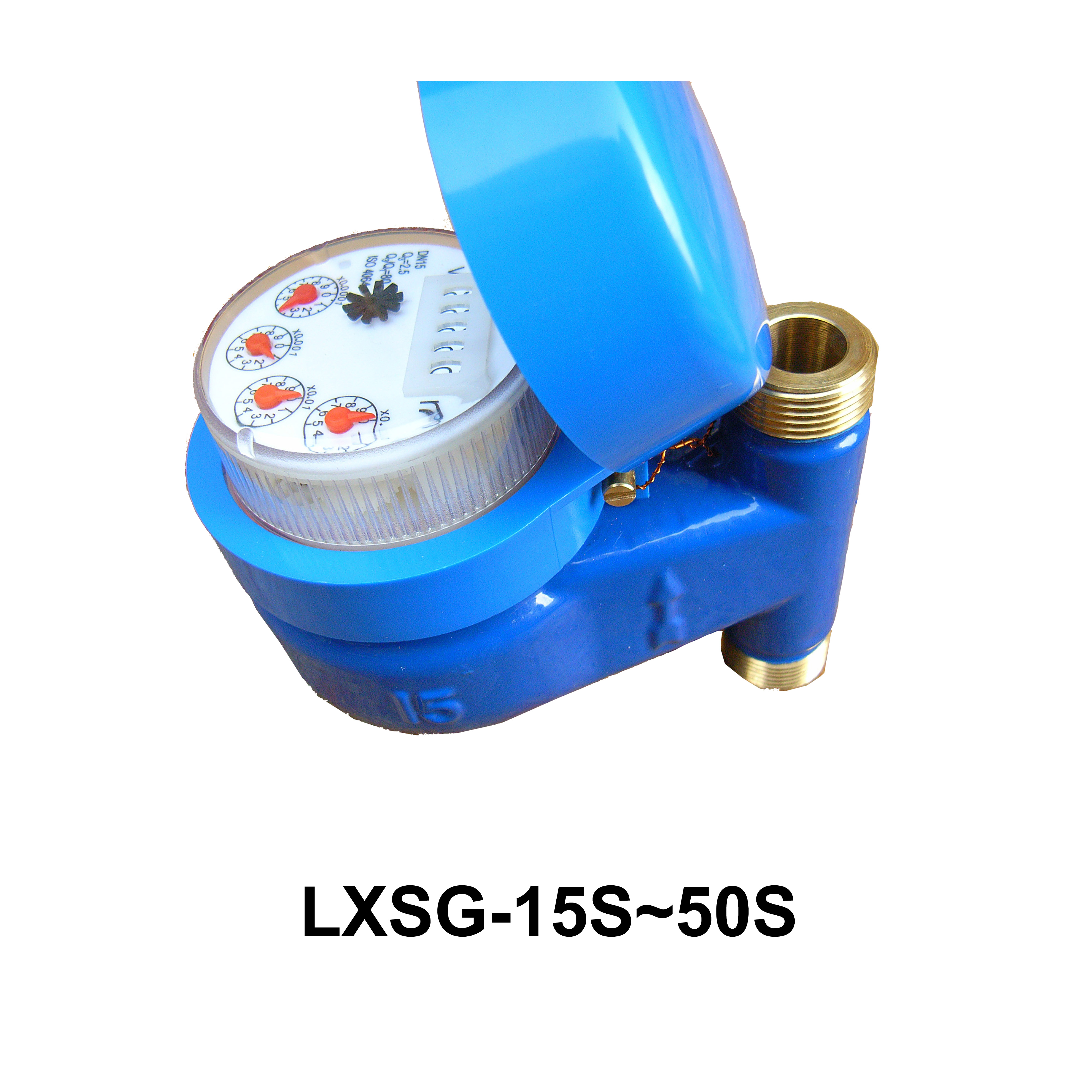

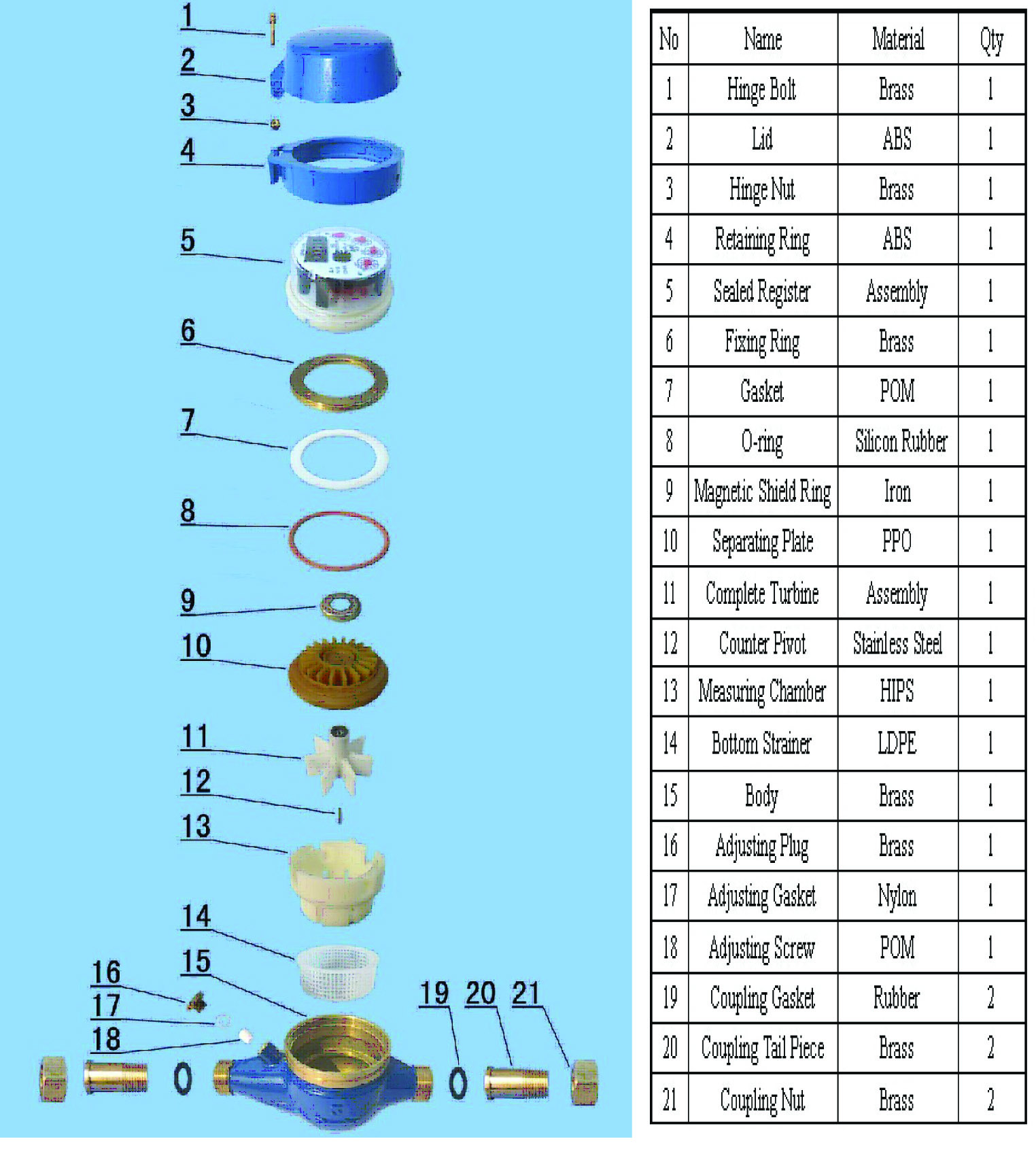

Water Meter LXSG(R)-15S~50S

Multi-jet, vane wheel, super dry-dial water meter

Application:

--Measuring the total volume of portable water passing through the pipeline.

Feature:

--Multi-jet, dry-dial, easy for maintenance;

--Magnetic drive reliable characteristic, long working life;

--Vacuum sealed register can be rotate to to keep the reading clear and convenience;

--Manufactured and tested in accordince to standard ISO4064

Optional Feature(Please specifing in the order):

--Non return valve;

--NPT Coupling threads

Working condition:

Water temperature: 0.1℃～30℃ for cold water. 0.1℃～90℃ for hot water.

 Water pressure: ≤1Mpa (1.6MPa for special requirement)

Note:For hot water,the Model:LXSGR-15S~50S

        For vertical installation,the Model:LXSGL-15S~40S

Maximum permissible error:

(1)in the lower zone from qmin inclusive up to but excluding qt is ±5%.

(2)in the upper zone from qt  inclusive up to and including qs is ±2%.(±3% for hot water meter)

Main technical specifications

Model Size (mm) Class qs qp qt qmin Minimum Reading Maximum Reading
m3/h L/h m3
LXSG(R)-15S 15 B 3 1.5 120 30 0.00005 99,999
LXSG(R)-20S 20 B 5 2.5 200 50 0.00005 99,999
LXSG(R)-25S 25 B 7 3.5 280 70 0.00005 99,999
LXSG(R)-32S 32 B 12 6.0 480 120 0.00005 99,999
LXSG(R)-40S 40 B 20 10 800 200 0.00005 99,999
LXSG(R)-50S 50 B 30 15 3000 450 0.00005 99,999

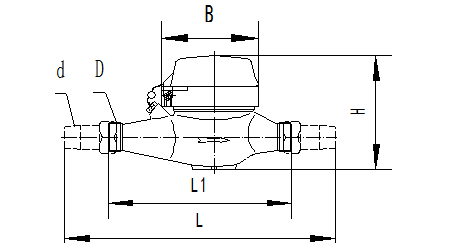

Dimensions For horizontal installation: LXSG-15S~50S

Model Size L1 L B H Threaded connection
mm D d
LXSG(R)-15S 15 165 259 89 102 G3/4B R1/2
LXSG(R)-20S 20 190 294 89 102 G1B R3/4
LXSG(R)-25S 25 225 345 98 124 G11/4B R1
LXSG(R)-32S 32 230 354 104 124 G11/2B R1 1/4
LXSG(R)-40S 40 200 328 112 130 G2B R 1 1/2
LXSG(R)-50S 50 245 389 124 152 G21/2B R2

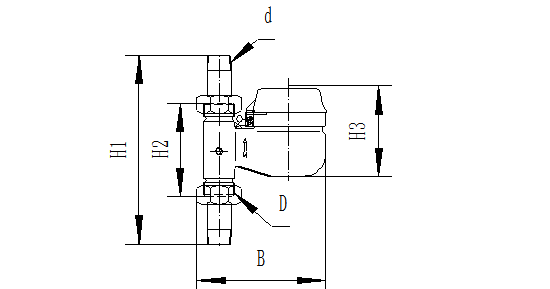

Dimensions For vertical installation: LXSGL-15S~40S


Model Size H1 H2 H3 B Threaded connection
mm D d
LXSG(R)-15S 15 194 100 99.5 133 G3/4B R1/2
LXSG(R)-20S 20 204 100 99.5 137 G1B R3/4
LXSG(R)-25S 25 228 108 122.6 166 G11/4B R1
LXSG(R)-32S 32 274 150 133.6 220 G11/2B R1 1/4
LXSG(R)-40S 40 278 150 133.6 228 G2B R 1 1/2

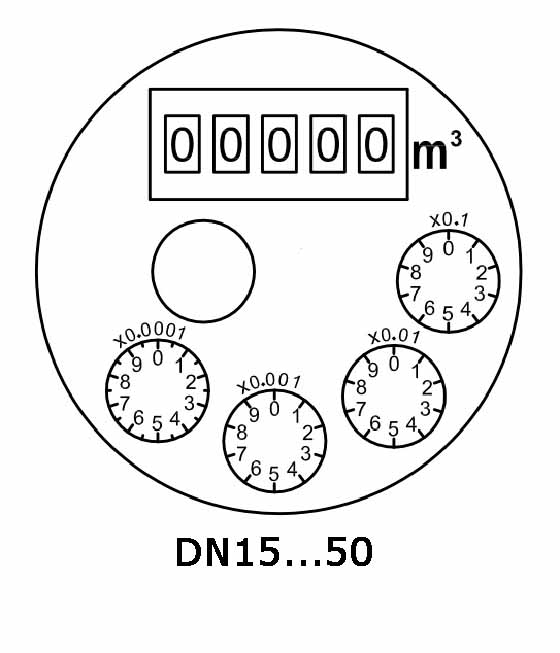

The dial
