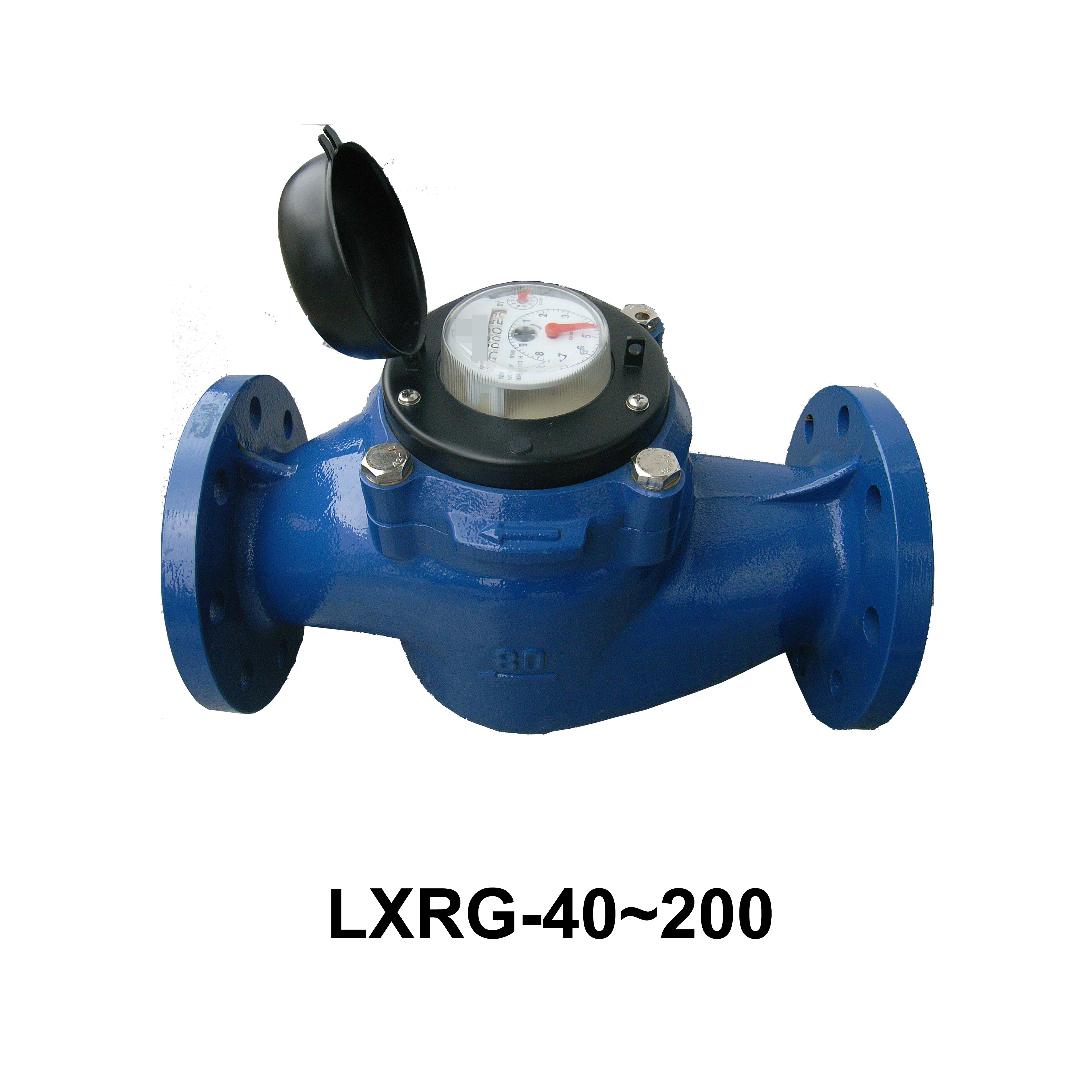

Water Meter LXRG-40~200

Vertical helix type water meter

This meter can be used for a remote reading transmission system as equipped with a built-in sensor.

Application

--Measuring the volume of water passing through the pipeline.

Feature:

--High accuracy,wide flow range

--High sensitivity due to the vertical helix turbine directly magnetic coupling with the reigster

--Special straight pipes are not needed for installation,as the internal measuring unit with stainless steel filter for easy fitting and maintenance

--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

--Dry-dial, Magnetic drive sensitive action, negligent pressure loss;

--High wear-resisting bearing for its stable operation and long life of measurement;

--Selected high quality materials for steady & reliable characteristic;

--Manufactured and tested in accordince to standard ISO4064

Working condition

Water temperature: 0.1℃～30℃

Water pressure: ≤1Mpa (1.6MPa for special requirement)

Maximum permissible errors

in the lower zone from q_min inclusive up to but excluding q_t is ±5%
in the upper zone from q_t inclusive up to and including q_s is ±2% (±3% for hot water meter)

Main technical specifications

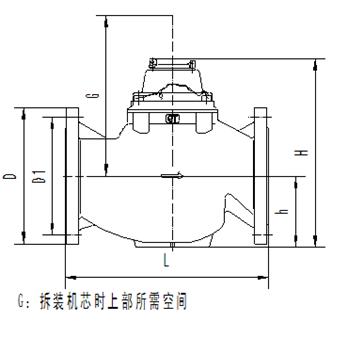

Dimensions (The Flange connections according to ISO7005-2)

NOTE: Special requirements for flange are available.

Water Meter LXRG-40~200

Water Meter Type
