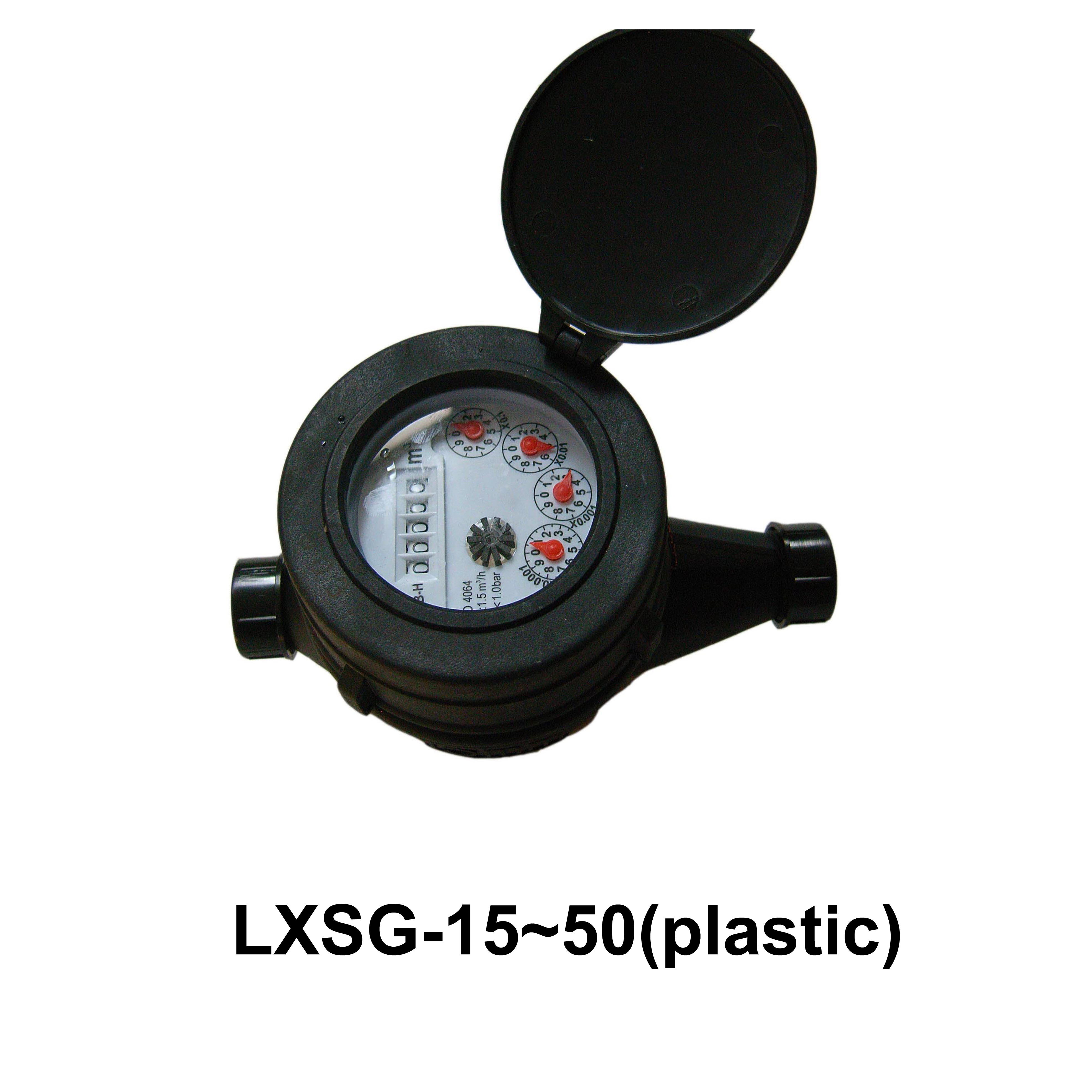

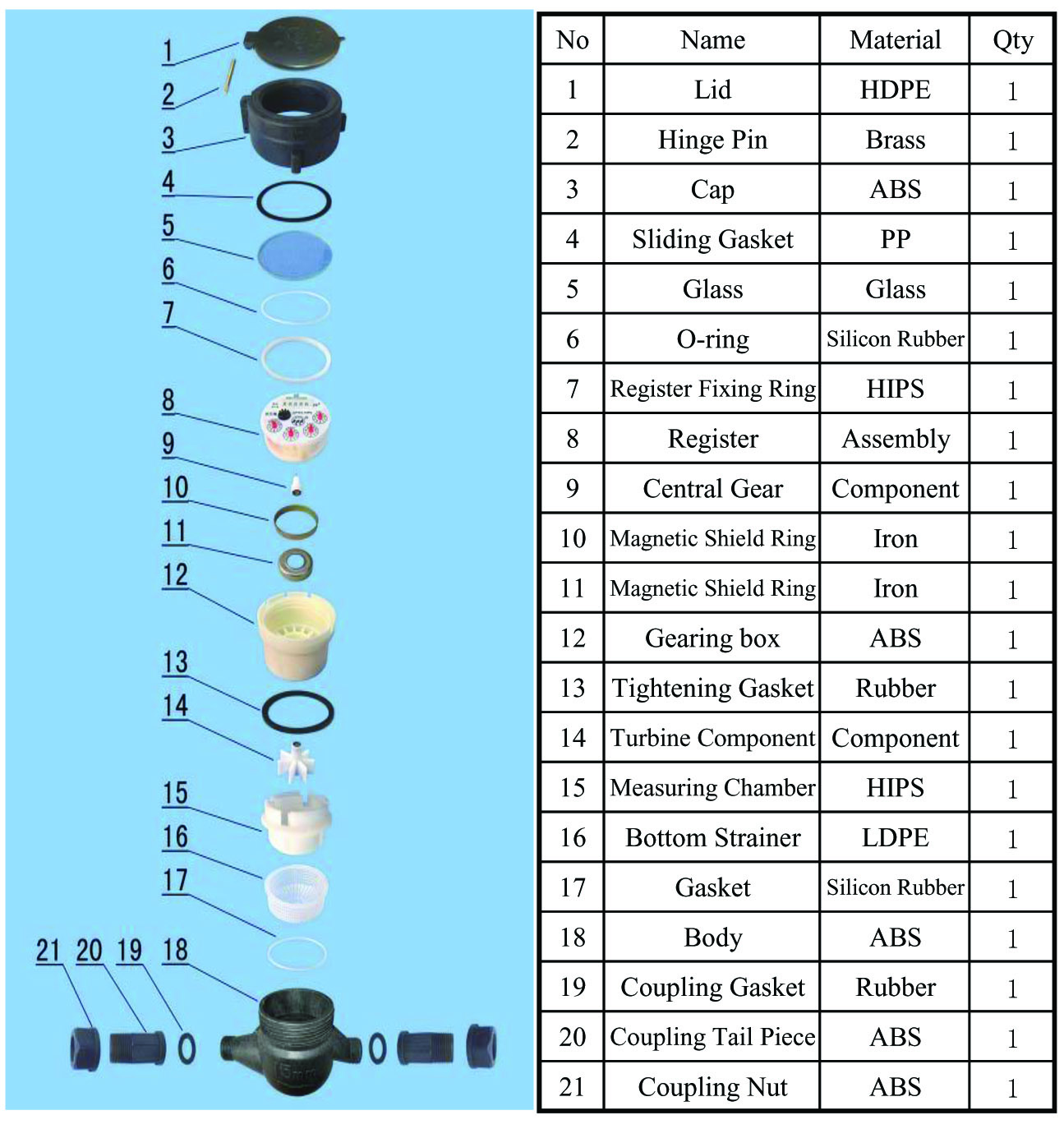

Water Meter LXSG-15～40(plastic body)

Multi-jet, vane wheel, dry-dial water meter

Application:

--Measuring the total volume of portable water passing through the pipeline.

Feature:

--Multi-jet, dry-dial, easy for maintenance;

--Magnetic drive reliable characteristic, long working life;

--Plastic meter’s body and impact plastic ring;

--Vacuum sealed register to keep the reading clear in a long term service;

--Manufactured and tested in accordince to standard ISO4064

Optional Feature(Please specifing in the order):

--Non return valve;

--U.S.gallon;

Working condition:

Water temperature: 0.1℃～30℃ for cold water. 0.1℃～90℃ for hot water.

Water pressure: ≤1.0Mpa

Maximum permissible error:

(1)in the lower zone from qmin inclusive up to but excluding qt is ±5%.

(2)in the upper zone from qt inclusive up to and including qs is ±2%.

Main technical specifications

Model	Size (mm)	Class	q_s	q_p	q_t	q_min	Minimum Reading	Maximum Reading
Model	Size (mm)	Class	m³/h		L/h		m³
LXSG-15	15	B	3	1.5	120	30	0.00005	99,999
LXSG-20	20	B	5	2.5	200	50	0.00005	99,999
LXSG-25	25	B	7	3.5	280	70	0.00005	99,999
LXSG-32	32	B	12	6.0	480	120	0.00005	99,999
LXSG-40	40	B	20	10	800	200	0.00005	99,999

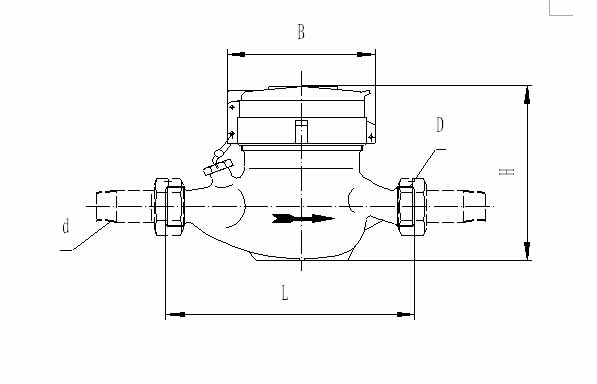

Dimensions

Model	Size	L	B	H	Connecting Thread
Model	mm				D	d
LXSG-15	15	165	106	114	G3/4B	R1/2
LXSG-20	20	195	106	116	G1B	R3/4
LXSG-25	25	225	112	122	G1¹/₄B	R1
LXSG-32	32	230	112	124	G1¹/₂B	R1 1/4
LXSG-40	40	245	129	154	G2B	R1 1/2

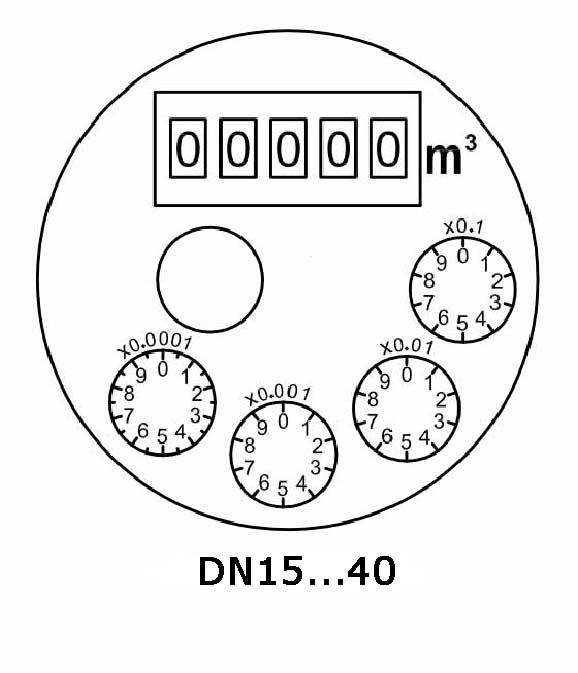

The dial
