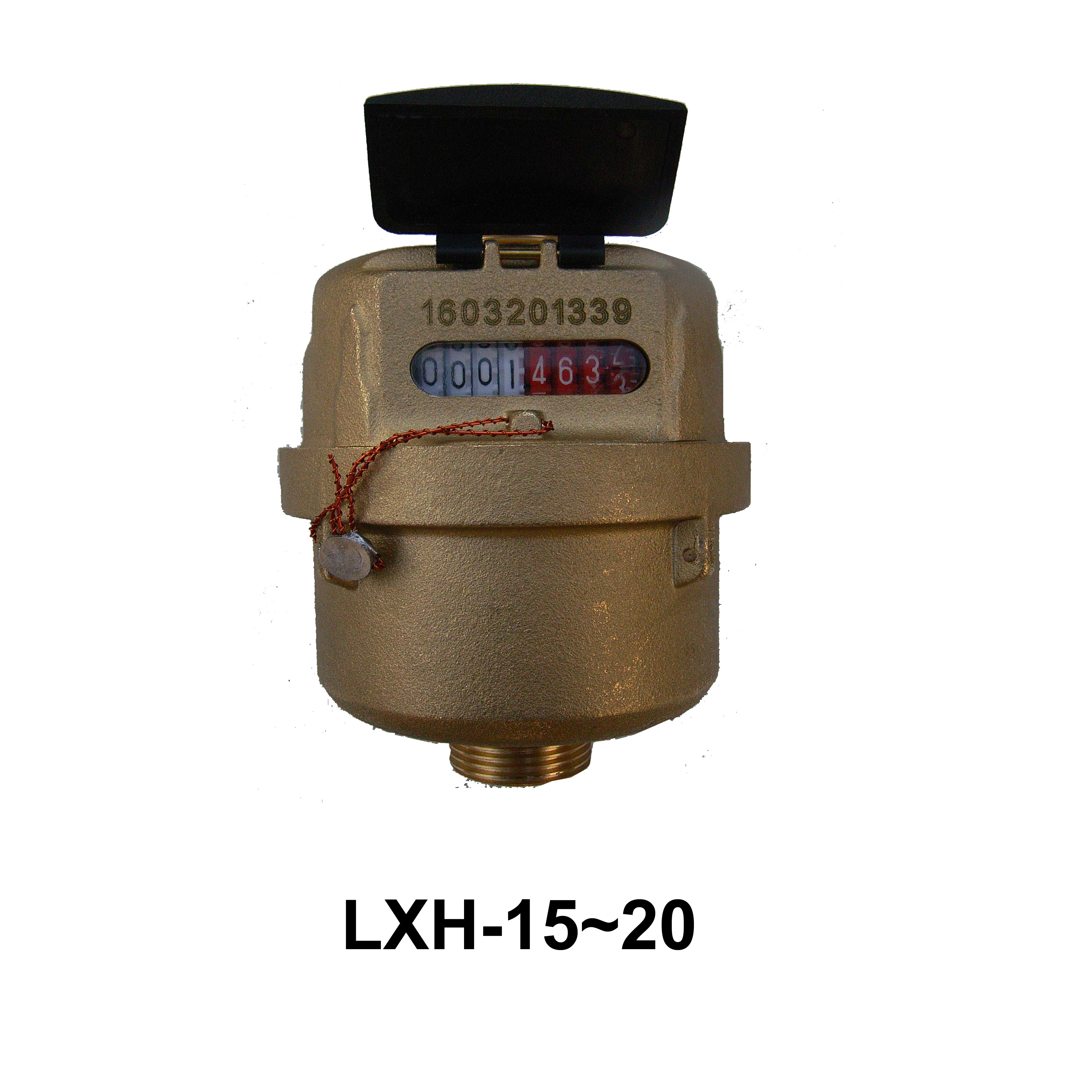

Water Meter LXH-15～20
Rotary Piston Liquid Sealed Water Meter
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application:
--For measurement of high flows of cold potable water passing through the pipeline.
Feature:
--Volumetric rotary piston principle of measurement;
--LXH-15～20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline;
--Register is sealed with a special liquid to keep a clear reading in long term service;
--Mechanism use of high-quality material to ensure a stable characteristic;
--Accurate measurement with conformity to ISO 4064 class C.
Note:
Technical data conform to International Standard ISO 4064.
Application:
Measuring the volume of cold portable water passing through the pipeline.
MAIN TECHNICAL SPECIFICATIONS
Type
Size (mm)
Class
qs
Overload Flow
qp
Permanent Flow
qt
Transitional Flow
qmin
Minimum
Flow
Minimum
Reading
Maximum
Reading
m3/h
L/h
m3
LXH-15
15
C
3
1.5 22.5 15
0.0001
9,999
LXH-20
20
C
5
2.5 37.5 25
0.0001
9,999

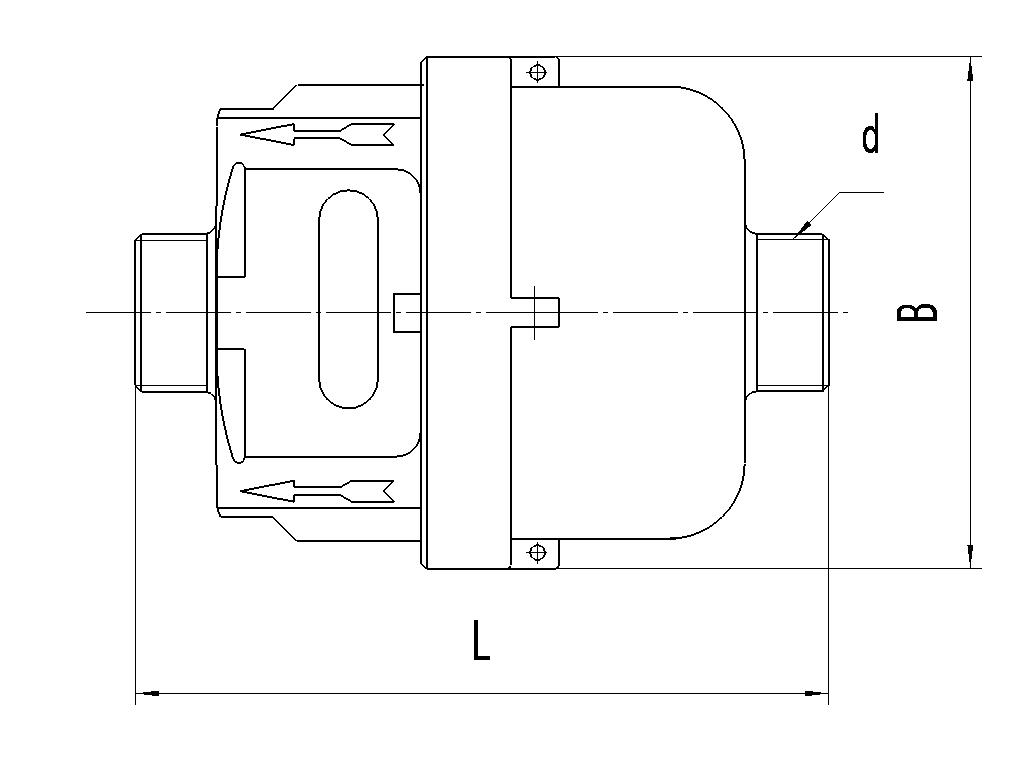

DIMENSIONS
Type
Size
L Length
B Width
d
Connecting Thread mm
LXH-15
15
115
85.2
G3/4B
LXH-20
20
130
85.2
G1B

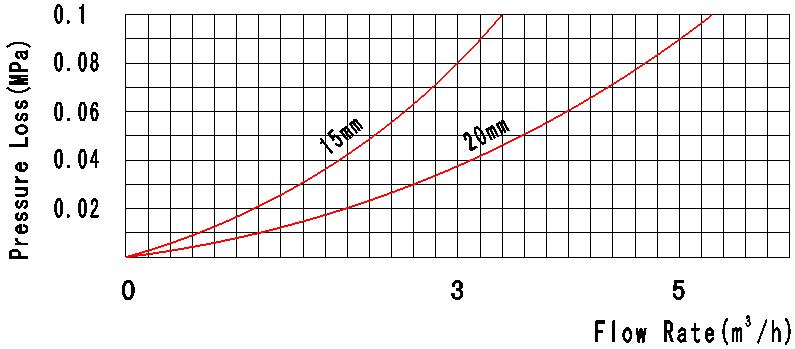

Pressure Loss Curve
