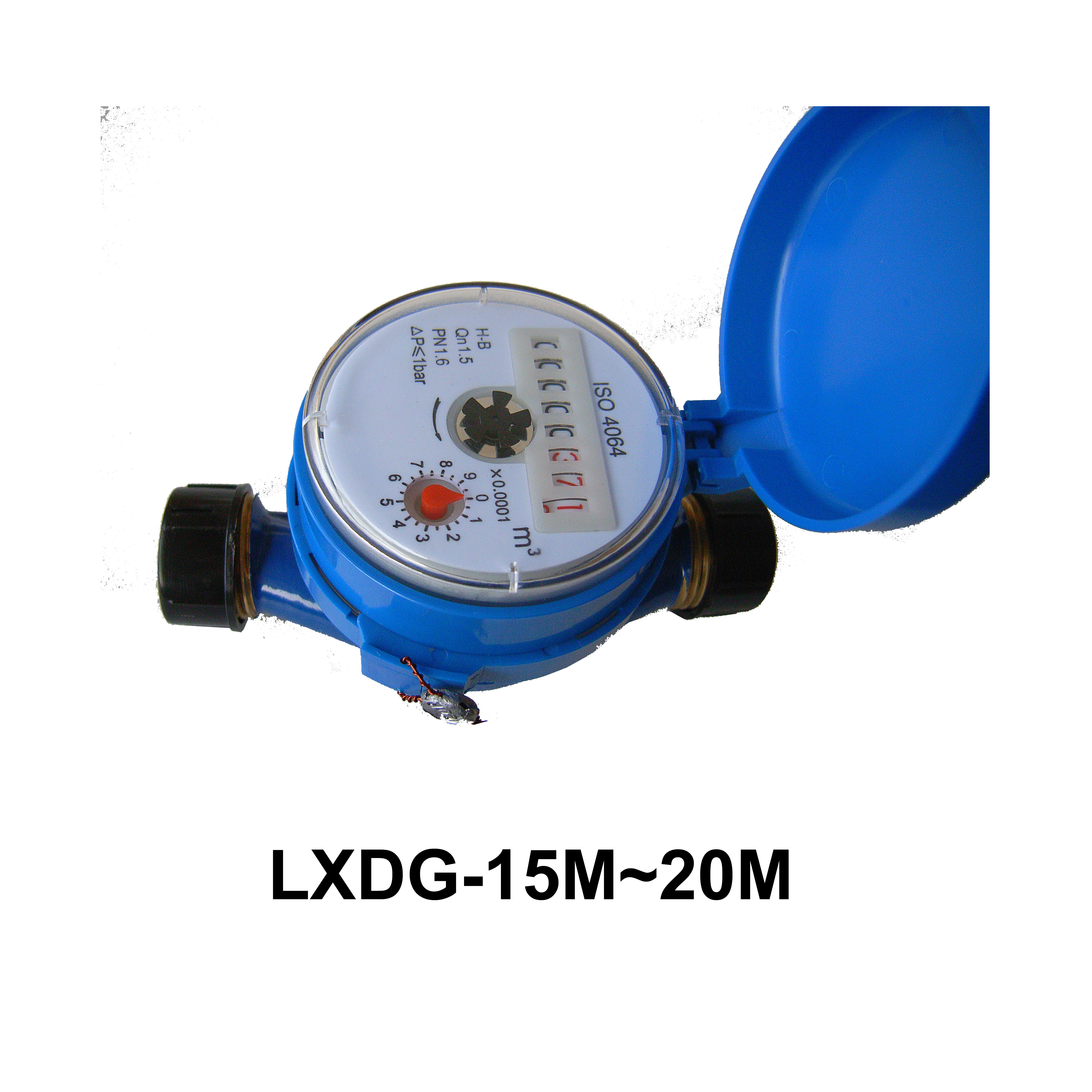

Water Meter LXDG(R)-15M~20M

Single-jet, vane wheel, dry-dial water meter

(mini type with eight number wheels)

Application:

--Measuring the volume of potable water passing through the pipeline.



Feature:

--Single-jet, dry-dial, free rotating register, small in size and light in weight.

--Magnetic drive, Resistance to exterior magnet interference.

--Vacuum sealed register to keep the reading clear in a long term service.

--Manufactured and tested in accordince to standard ISO4064.



Working condition:

--Water temperature: 0.1℃～30℃ for cold water.

                 0.1℃～90℃ for hot water.

--Water pressure : ≤1.0Mpa



Optional Feature(Please specifing in the order):

--Non return valve;

--NPT Coupling threads



Note:For hot water,the Model:LXDGR-15M~20M



Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.

(2) in the upper zone from qt inclusive up to and including qs is ±2%.(±3% for hot water meter)

Main technical specifications

Model Size (mm) Class qs qp qt qmin Minimum Reading Maximum Reading
m3/h L/h m3
LXDG(R)-15M 15 B 3 1.5 120 30 0.00005 99,999
LXDG(R)-20M 20 B 5 2.5 200 50 0.00005 99,999

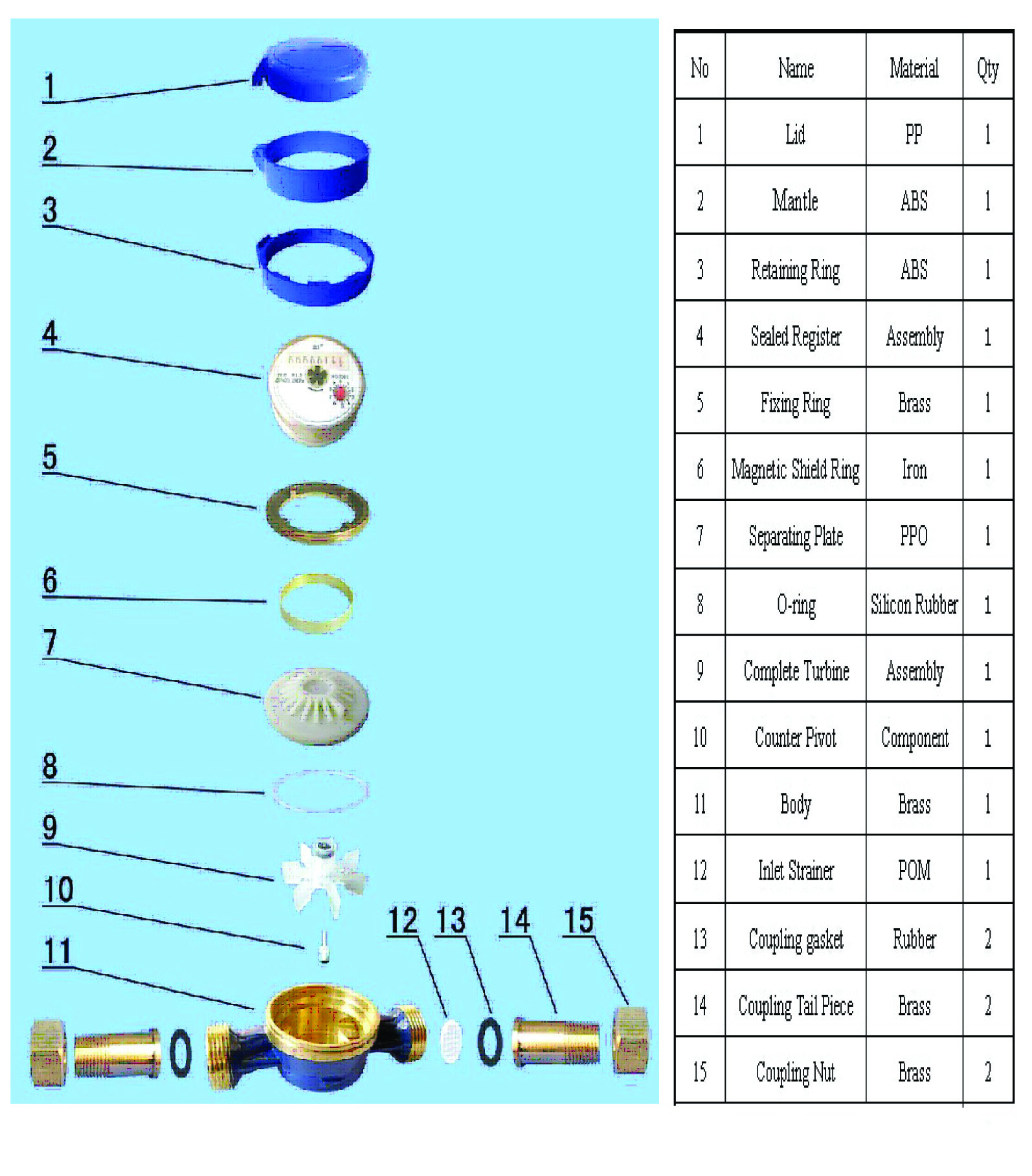

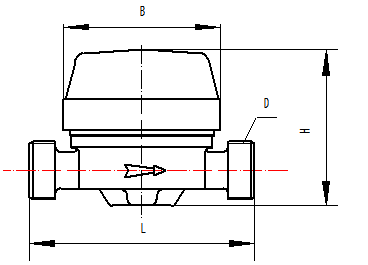

Dimensions

Model Size L B H Connecting Thread
mm D d
LXDG(R)-15M 15 110 68 72 G3/4B R1/2
LXDG(R)-20M 20 130 68 74 G1B R3/4

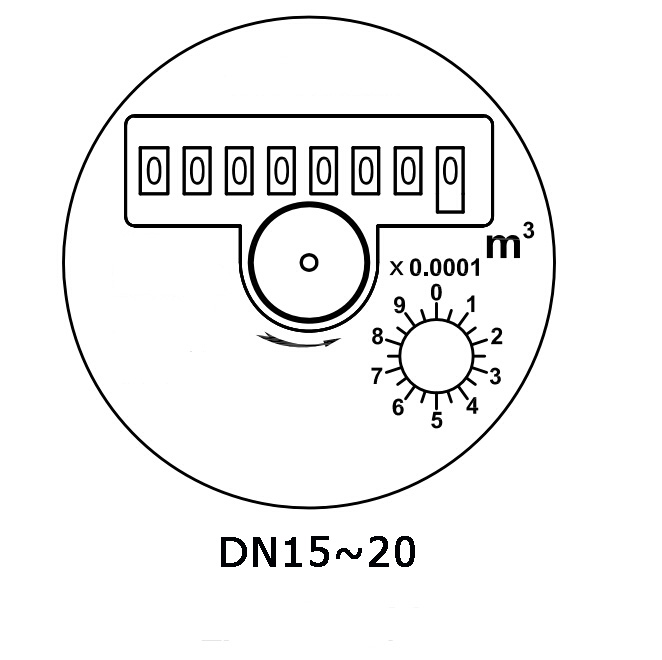

The dial
