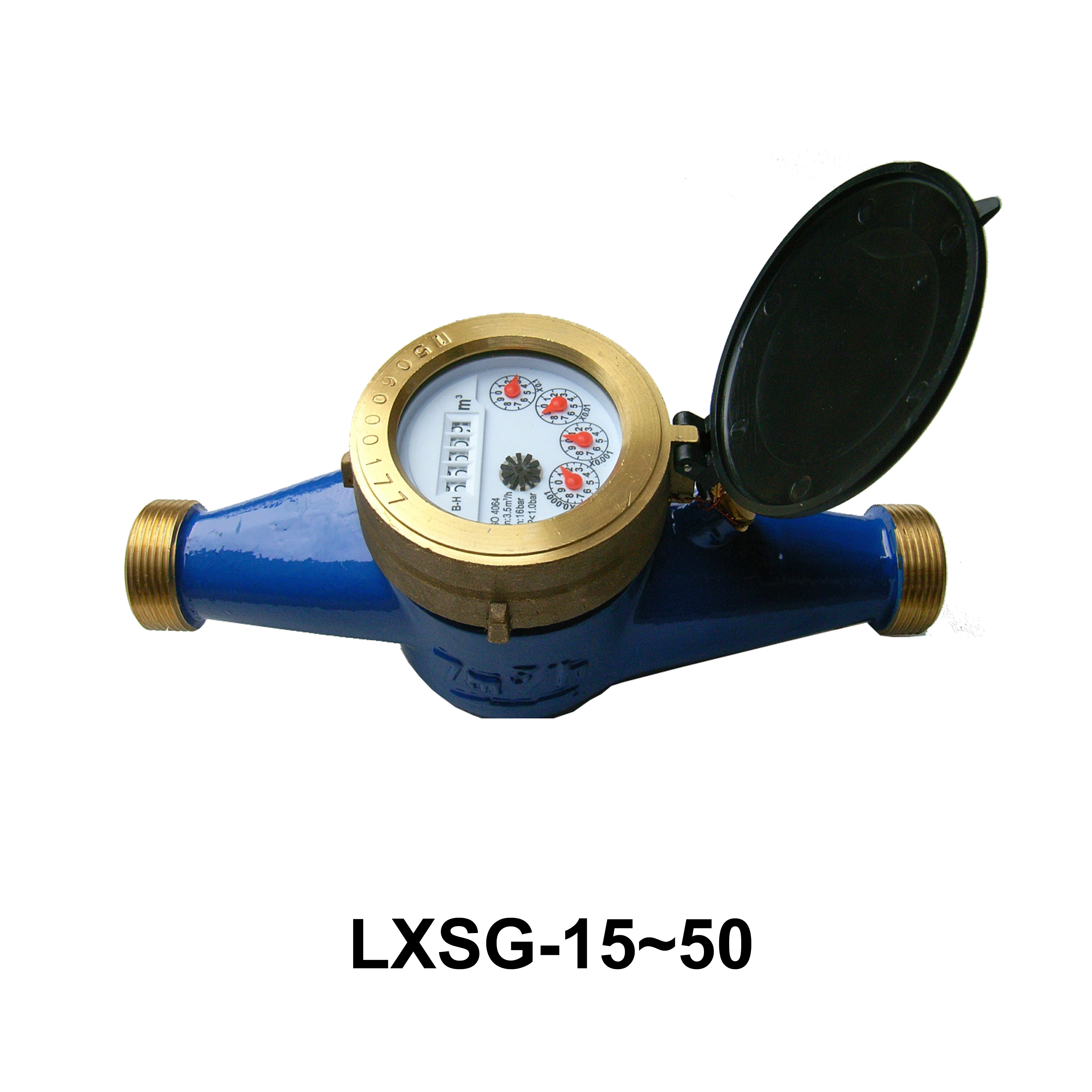

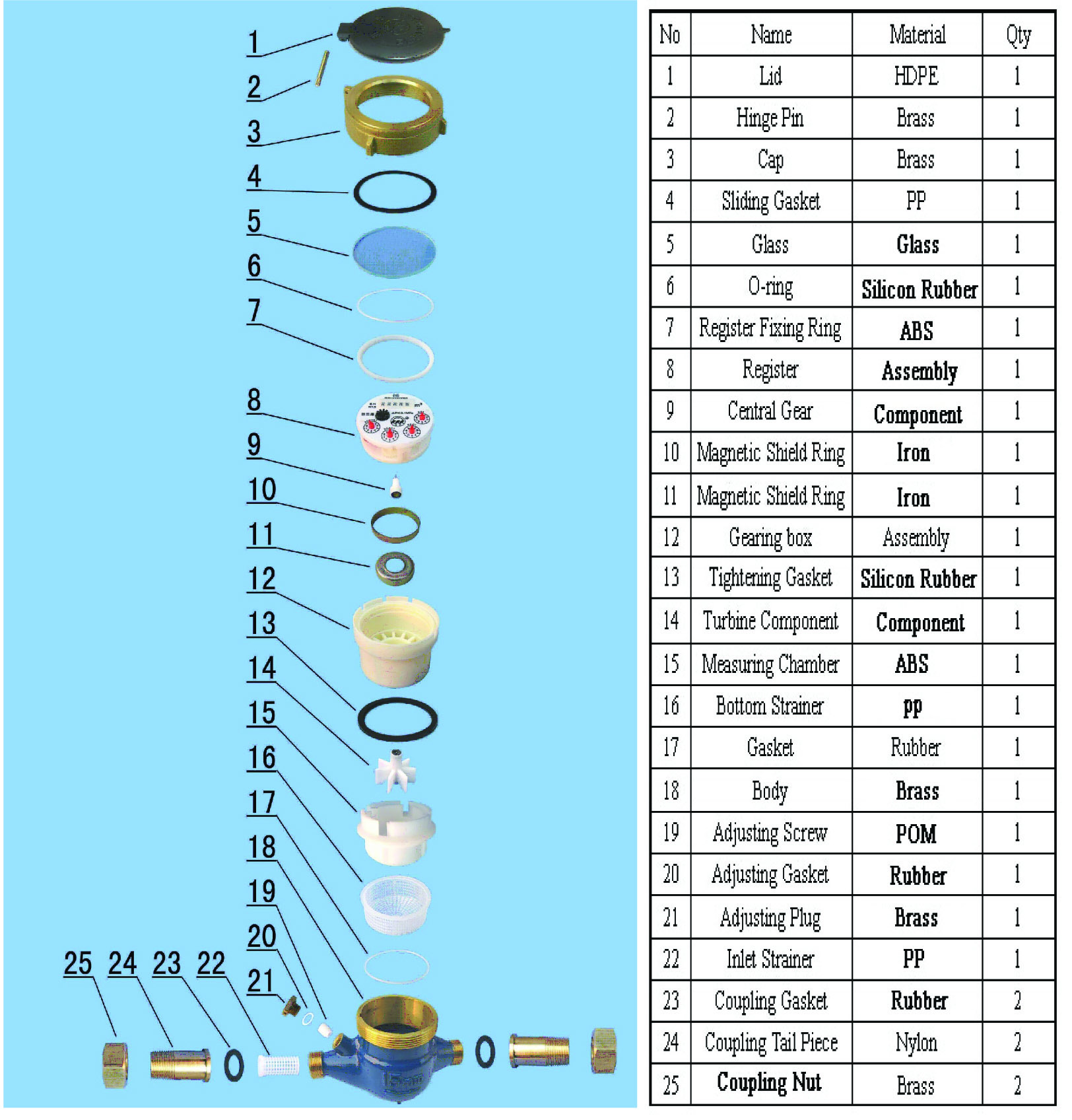

Water Meter LXSG(R)-15～50

Multi-jet, vane wheel, dry-dial water meter


Application:

--Measuring the total volume of portable water passing through the pipeline.



Feature:

--Multi-jet, dry-dial, easy for maintenance;

--Magnetic drive reliable characteristic, long working life;

--Vacuum sealed register to keep the reading clear in a long term service;

-- Manufactured and tested in accordince to standard ISO4064



Optional Feature(Please specifing in the order):

--Non return valve;

--U.S.gallon;

--NPT Coupling threads



Working condition:

Water temperature: 0.1℃～30℃ for cold water. 0.1℃～90℃ for hot water.

 Water pressure: ≤1Mpa (1.6MPa for special requirement)



Note:For hot water,the Model:LXSGR-15~50



Maximum permissible error:

(1)in the lower zone from qmin inclusive up to but excluding qt is ±5%.

(2)in the upper zone from qt  inclusive up to and including qs is ±2%.(±3% for hot water meter)

Main technical specifications

Model Size (mm) Class qs qp qt qmin Minimum Reading Maximum Reading
m3/h L/h m3
LXSG(R)-15 15 B 3 1.5 120 30 0.00005 99,999
LXSG(R)-20 20 B 5 2.5 200 50 0.00005 99,999
LXSG(R)-25 25 B 7 3.5 280 70 0.00005 99,999
LXSG(R)-32 32 B 12 6.0 480 120 0.00005 99,999
LXSG(R)-40 40 B 20 10 800 200 0.00005 99,999
LXSG(R)-50 50 B 30 15 3000 450 0.00005 99,999

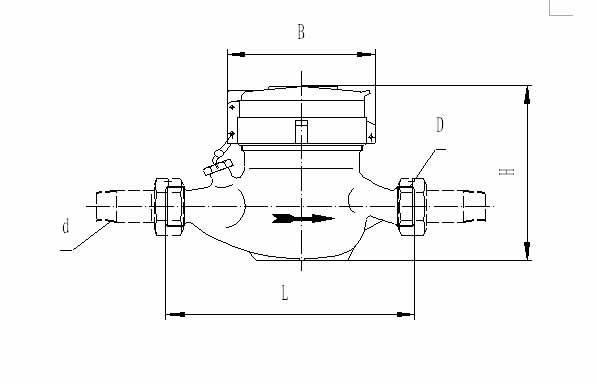

Dimensions

Model Size L B H Connecting Thread
mm D d
LXSG(R)-15 15 165 99 109 G3/4B R1/2
LXSG(R)-20 20 190 99 109 G1B R3/4
LXSG(R)-25 25 260 104 119 G11/4B R1
LXSG(R)-32 32 260 104 119 G11/2B R1 1/4
LXSG(R)-40 40 300 125 156 G2B R 1 1/2
LXSG(R)-50 50 300 125 156 G21/2B R2
280 165 181 Flanged connection: ISO 7005-2

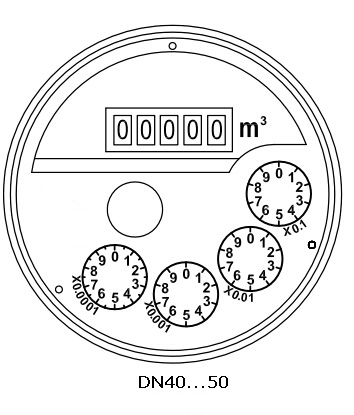

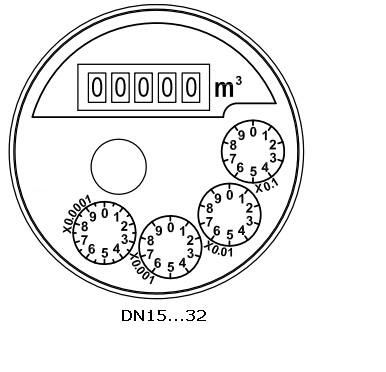

The dial
